Equipment Details

Overhead Discharge

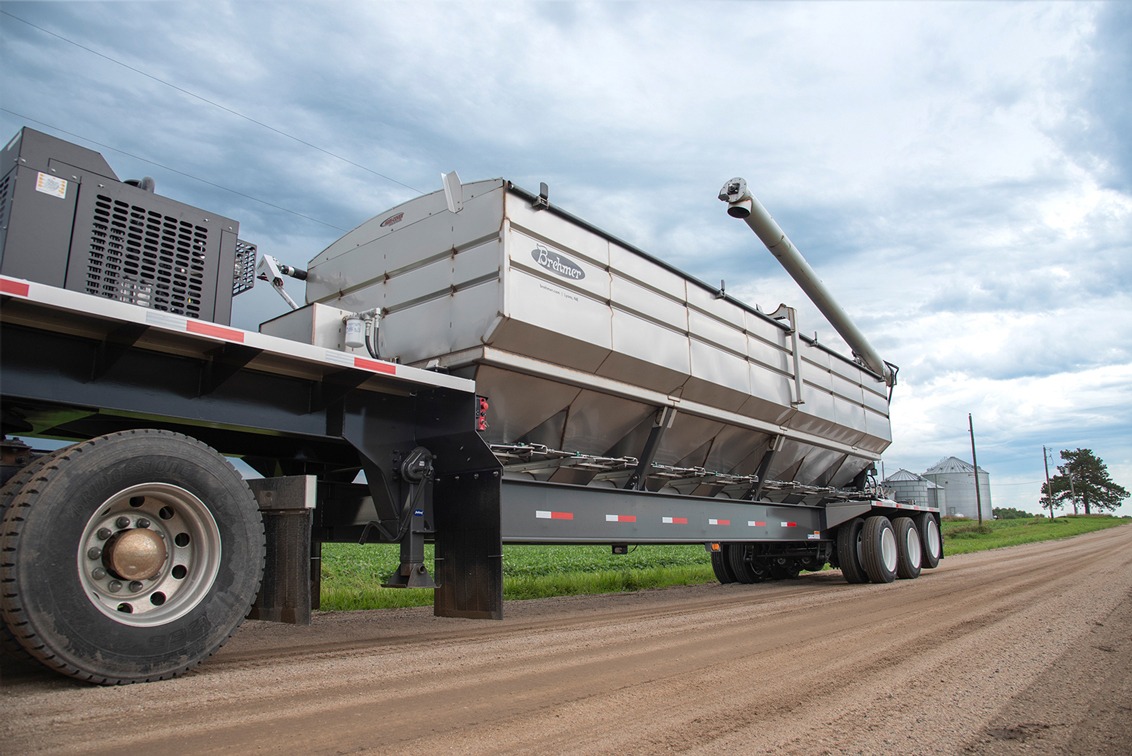

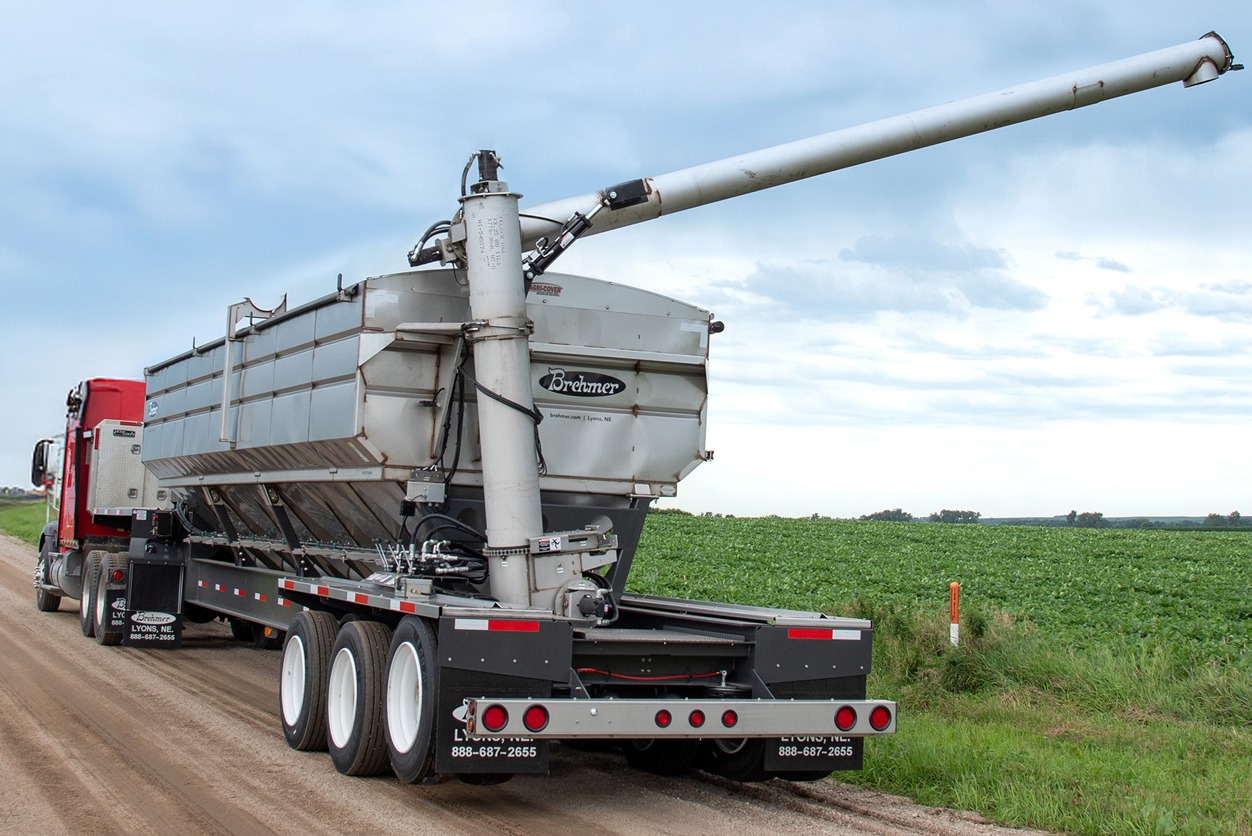

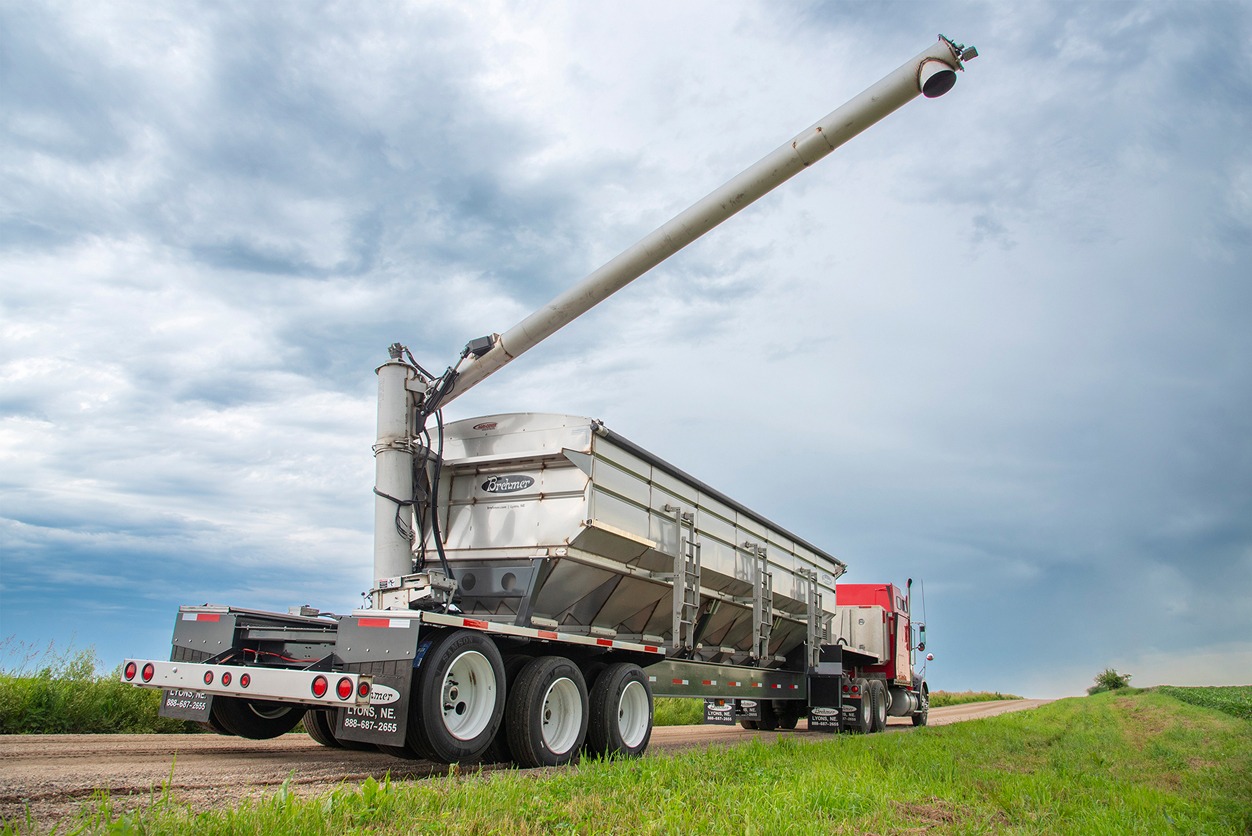

Trailer Mount Fertilizer Tender

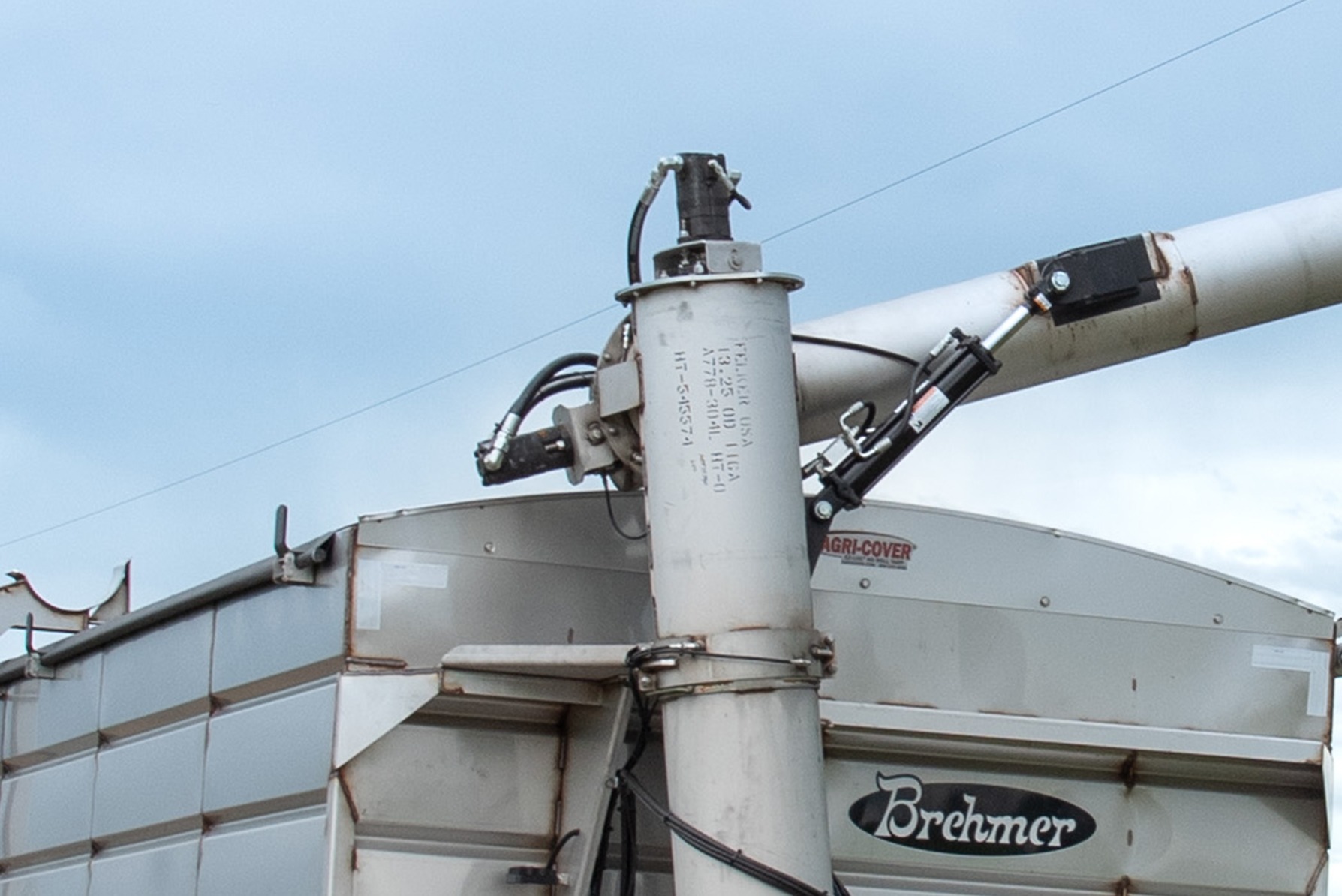

NOW AVAILABLE ON ALL TRAILER-MOUNTED OVERHEAD TENDERS: TOP-MOUNTED ORBITAL MOTORS ON THE VERTICAL AUGER.

All Overhead Discharge Dry  Tenders are built with the highest of quality standards. Brehmer’s trailer mount fertilizer tenders come in a variety of options to fit your needs.

FEATURES:

  • 5 Bin on 20 Ft, 6 Bin on 24 Ft , 7 Bin on 28 Ft, and 8 Bin on 32 Ft.
  • 270 Degree Rotation Auger System
  • 304 Stainless Steel Bins and Auger Flighting Systems
  • 10” Belly Auger
  • 10″ Overhead Discharge Auger Systems
  • 13” Vertical Auger System
  • Max Unloading Capacity of 3500-4000 LBS/MIN
  • Low Center of Gravity Box (Unique Bin Design)
  • EZ Slide Gates System
  • Stainless Steel Motor Coupling Shafts
  • Individual Hopper Ladders
  • Reinforced Corner Gussets
  • Grease Banks
  • Unique Bearing Design
  • 2″ Clean-outs
  • Filled-In Tarp Bow System

OPTIONS:

  • Split Bins
  • Deutz Diesel Engine or Wet Kit
  • Stainless Steel Back/Front Deck, Fenders, Frame
  • 19′ Discharge Auger Available on All Units
  • 6″ Taller Sides

Brehmer Dry Fertilizer Tenders frame options:

   Stainless Steel

   Tender Gray

Click the tabs below to expand and view measurements for the overhead discharge trailer mount fertilizer tender.

20' Tender Measurements
  • Travel Height – 12’4″
  • Auger Length – 16’10”
  • Discharge Height: MIN – 10’8″
  • Discharge Height: MAX – 21’3″
  • Auger Reach: SIDE – 13’8″
  • Auger Reach: REAR – 14’7″
  • Standard Cubic Feet – 711
  • 6″ Taller Cubic Feet – 791

Discharge height is measured from the top of the existing truck or trailer frame.

24' Tender Measurements
  • Travel Height – 12’4″
  • Auger Length – 16’10”
  • Discharge Height: MIN – 10’8″
  • Discharge Height: MAX – 21’3″
  • Auger Reach: SIDE – 13’8″
  • Auger Reach: REAR – 14’7″
  • Standard Cubic Feet – 854
  • 6″ Taller Cubic Feet – 950

Discharge height is measured from the top of the existing truck or trailer frame.

28' Tender Measurements
  • Travel Height – 12’4″
  • Auger Length – 16’10”
  • Discharge Height: MIN – 10’8″
  • Discharge Height: MAX – 21’3″
  • Auger Reach: SIDE – 13’8″
  • Auger Reach: REAR – 14’7″
  • Standard Cubic Feet – 996
  • 6″ Taller Cubic Feet – 1107

Discharge height is measured from the top of the existing truck or trailer frame.

32' Tender Measurements
  • Travel Height – 12’4″
  • Auger Length – 16’10”
  • Discharge Height: MIN – 10’8″
  • Discharge Height: MAX – 21’3″
  • Auger Reach: SIDE – 13’8″
  • Auger Reach: REAR – 14’7″
  • Standard Cubic Feet – 1138
  • 6″ Taller Cubic Feet – 1265

Discharge height is measured from the top of the existing truck or trailer frame.
